nstallation Time: January , 2024
Location: Kismayu ( The Southern Port City) , Somalia
Equipment: DT4 Bitumen Melting Machine/ Bitumen Decanter

Bitumen melting machine, also named bitumen decanter, generally used with asphalt mixing plants together.
The bitumen melting machine is a specialized equipment used in the construction industry for melting and heating bitumen, which is commonly used as a binder in asphalt and road construction. Bitumen, in its raw form, is typically solid or semi-solid at room temperature, so it needs to be heated to a liquid state before it can be mixed with other materials and applied to surfaces.
The melted bitumen is then pumped or transferred to storage tanks or directly into asphalt mixing plants for further processing and use in road construction.

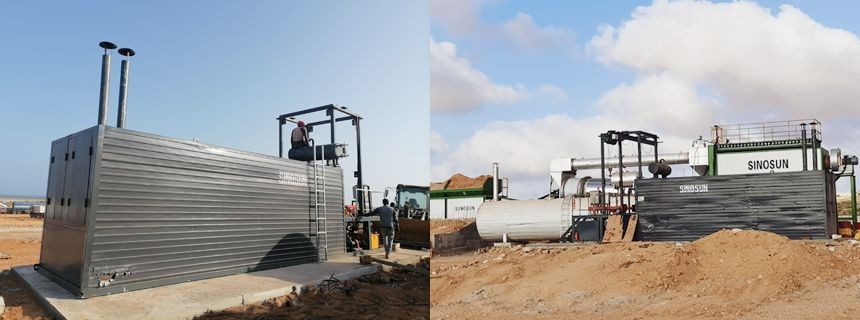

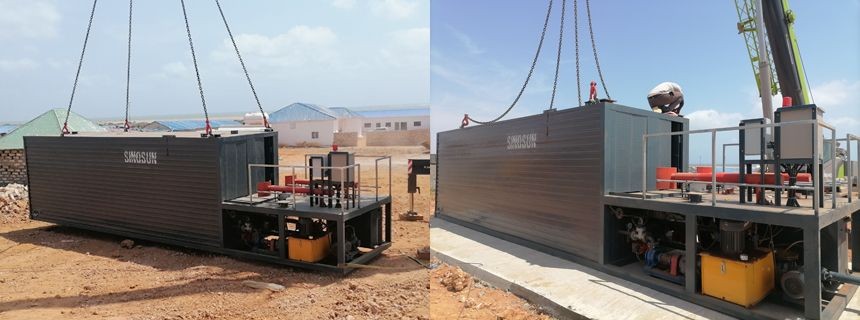

This DT4 bitumen melting machine was installed in Kismayu, Somalia in January , 2024 , used for our CAP60T continuous mix asphalt plant that all manufactured by China SINOSUN Machinery.

Bitumen melting machines come in various sizes and configurations, ranging from small portable units suitable for smaller construction projects to larger stationary plants designed for high-capacity production.
The main parameters of SINOSUN bitumen melting machine in Somalia as following:
Equipment Technical Parameters
Model : DT-4 Bitumen Melting Machine
Production capacity : 4T/H (ambient temperature of barrel matrix asphalt not lower than 20℃)
Finished asphalt temperate : 120～140℃
Barrels in each pallet : 21 drums (Ø580*900mm, 200Kg/drum)
Heat capacity of thermal oil heating furnace : 40×104 kcal/h
Temperature of thermal oil : 200～240℃
Melted bitumen storage : 15m3
Total power : 28KW with diesel burner
Total weight : around 7T

China SINOSUN Machinery is a professional road construction machinery manufacturer and provider since 2004. We provide the one-stop service and turn-key solutions for our customers. Welcome to inquiry us for get more information.
