Mobile Asphalt Mixing Plant

  • > Application: Mainly applied to the construction of airport runway, port, road and bridge and ideal for emergency building of specialized road.
  • > Capacity Range: 40-200TPH
  • > Certification: ISO, CE, EAC Certification
  • > Motor Power: 154-430KW
Get a Quote

Description

Parameters

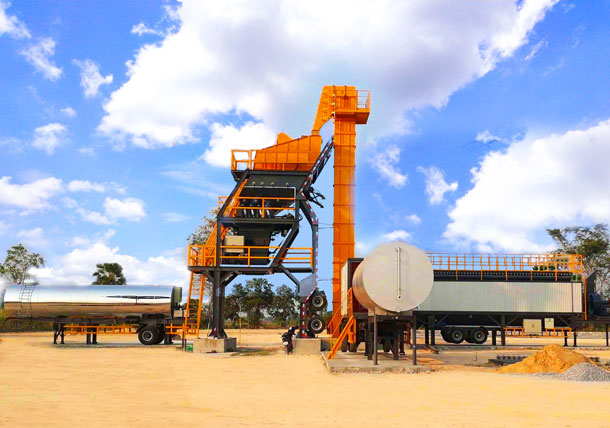

. SINOSUN- MAP series Mobile Asphalt Batch Mix Plant (capacity scope: 40-200t/h)

Introducing Germany Technology for the mixer, the mobile asphalt mixing plant is widely applied to the construction of airport runway, port, road and bridge and they are the ideal equipment for emergency building of specialized road. This asphalt plant equipment , with modular construction and compact design, is easy to install, transport and dismantle.

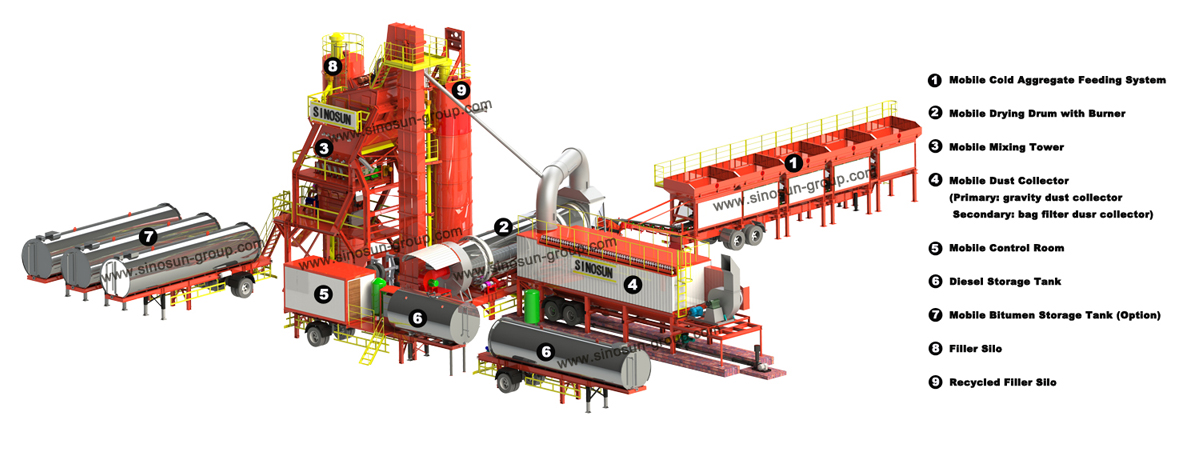

This MAP Series mobile asphalt mixing plant has the following mobile chassis:
1. Mobile Cold Aggregate Feeding System
2. Mobile Drum Dryer with Oil Burner
3. Mobile Mixing Tower
4. Mobile Bag House Dust Collector
5. Mobile Control Room with One Diesel Storage Tank
6. Mobile Bitumen Tank(Option)
7. Mobile Filler Storage and Supplying System(Option)

Our mobile asphalt plant adopts PLC programming controller and computer which can carry on the automatic and manual control of every part and every production process. Mobile asphalt batching plant features environmental friendly. The dust emission is less than 20 mg/Nm3 with no pollution to the environment.

Main features:
1. Adopt Korea mobile asphalt plant structure design, high mobility performance, small land occupied, convenient transportation and  little downtime.
2. Adopt AVIC brand Aviation Plugs, easy connection, fast disassembly and assembly wires.
3. Simple and convenient production technology process, accurate, highly reliable and stable control system.
4. Move fast, save cost.
5. System of drying, weighing, mixing, discharging are full-automatically controlled.
6. All the units are separated mutually while each unit can achieve seamless connection.

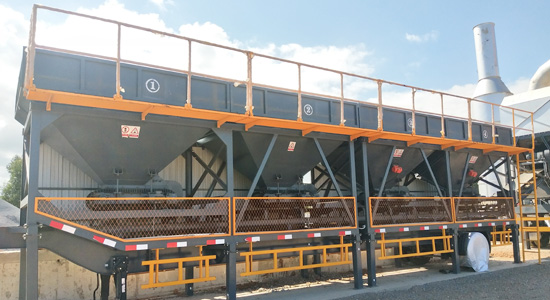

>1. Mobile Cold Aggregate Feeding System

The aggregate feeding hoppers and aggregate collecting belt are mounted on one mobile chassis.
The belt feeder that adopts the frequency speed regulator has long speed range, so it runs smoothly and efficiently.

Each discharging gate of hopper has an alarm for the warning of no aggregate in the bins.
There is a vibrator on the wall of bin to avoid blockage.

On the top of each hopper there is a screen to prevent the entry of bigger aggregate, ensuring the reliability of system.
  Mobile Cold Aggregate Feeding System

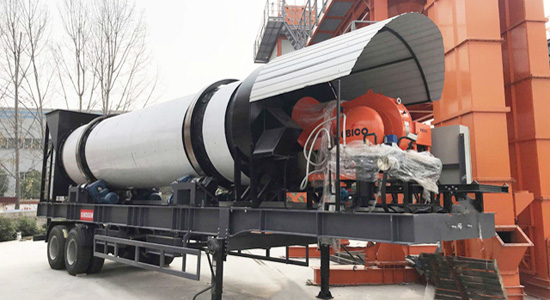

Mobile Drum Dryer with Oil Burner   >2. Mobile Drum Dryer with Oil Burner

The mobile drum dryer adopts 4 frictional wheels, which is drived by four synchronous motors. It runs smoothly with low noise.

The temperature of the dried aggregate directly influences the temperature of the final product; Drying efficiency directly influences the consumption of the fuel, thereby the reasonable structure is very important. We fully absorbed the abroad advanced technology of mixing and got satisfying effect and realized the anticipated object.

About the oil burner, we have international brand and domestic brand for you to choose.

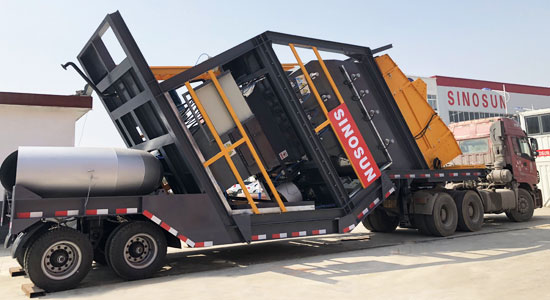

>3. Mobile Mixing Tower

The mixing tower includes the vibration screen, hot aggregate storage bin and weighing hopper, asphalt mixer, bitumen weighing, filler weighing(option). All these parts are mounted on one trailer chassis. Easy for installation and transferring to other worksite after you finished project in one place.

The reducer for the mixer can be domestic brand or imported Germany NORD Brand.

The weighing sensors can be Mettler Toledo, USA brand or Chinese Taiwan brand: Airtac.
  Mobile Mixing Tower

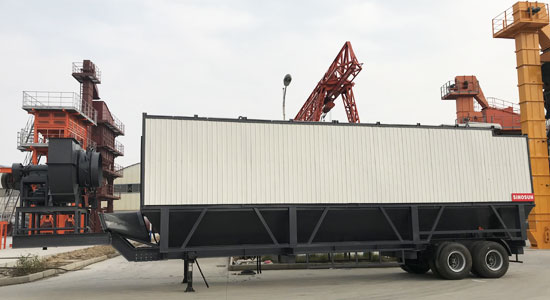

Mobile Bag House Dust Collector   >4. Mobile Bag House Dust Collector

This dust collecting system is equipped with primary gravity dust collector and secondary bag house dust collector. All the collected aggregate grain is conveyed to the hot aggregate elevator for recycling use.

The secondary dust collecting system bag house dust collector. The bags adopt high temperature resistance material. It can work under rated high temperature,it has long life-span and good ventilation. The efficiency of dust collector can reach up to more than 99%,which fully meet environment protection standard.

The collected filler can be recycling used. Of course, if you do not need, it can be discharged by screw conveyor.

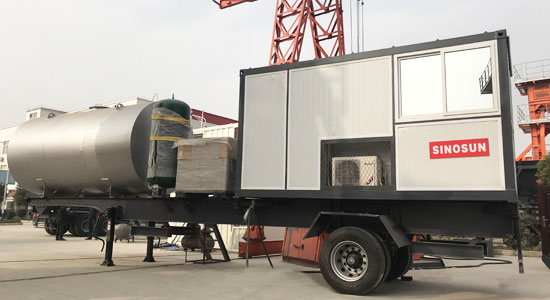

>5. Mobile Control Room and Control System

The electric control system adopts advanced electric components (including products of Siemens, Schneider or Omron) which ensures the reliability of long performance. According to the order of start, the driving control wire sets the protecting lines, thus guarantees the reliability and safety of operation. The motor of the belt feeder in the batching process is controlled by frequency speed regulator, so the regulation precision is improved.

The control room and the diesel tank are mounted in the same chassis to make the full use of the chassis layout.
  Mobile Asphalt Plant Control System

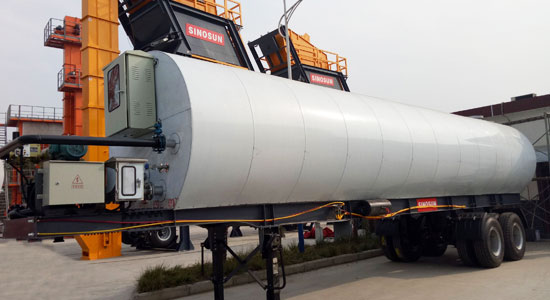

Mobile Asphalt Miixng Plant Bitumen Tank   >6. Mobile Bitumen Storage and Supplying System(Option)
>7. Mobile Filler Storage and Supplying System(Option)

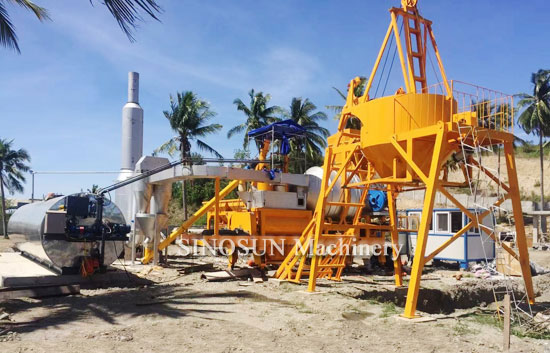

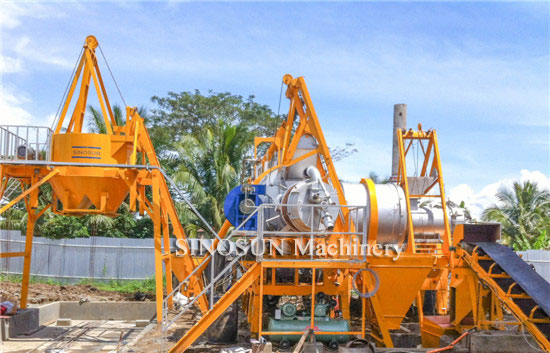

. QLB series Mobile Asphalt Mixing Plant
Introduction
The series small mobile asphalt plant are twin shaft asphalt mixing plant. It integrated design of batch type drying drum and horizontal twin-shaft mixer.
The capacity of QLB series portable asphalt mixing plant is from 10-80t /h.
QLB series Mobile Asphalt Mixing Plant QLB series Portable Asphalt Mixing Plant
