What is an Asphalt Mixing Plant for road construction?

What is an Asphalt Mixing Plant?

Also known as asphalt batching plant, an asphalt mixing plant is core equipment for road construction. It precisely heats, dries, weighs and mixes raw materials including aggregates (crushed stone, sand), mineral powder and asphalt in strict engineering proportions to produce qualified hot-mix asphalt mixtures. These finished mixtures are widely used for pavement paving of expressways, municipal roads, airport runways and other road infrastructure projects.
Asphalt mixing plants are classified by production process, mobility and output capacity.

1. Classification by Production Process & Mixing Mode

There are two main types: batch mixing type and continuous drum mixing type.
  • Batch Asphalt Mixing Plant：
    It adopts batch weighing and batch mixing with high batching accuracy. Cold materials are sent into the drying system for heating, then screened thermally, accurately weighed by the metering system and delivered into the mixing tank for final mixing before discharging. It produces asphalt mixtures with stable quality, which is mandatory for high-standard road projects such as high-grade highways, airports and municipal main roads.
    Continuous Drum Asphalt Mixing Plant：
  • It realizes continuous feeding, drying and integrated mixing. Featuring simple structure, high production efficiency and low maintenance cost, it is mainly applied to low-standard roads with less strict proportion requirements, such as rural roads and large-scale continuous ordinary road construction projects.


2. Classification by Equipment Mobility

Divided into stationary type, mobile type and semi-stationary type.

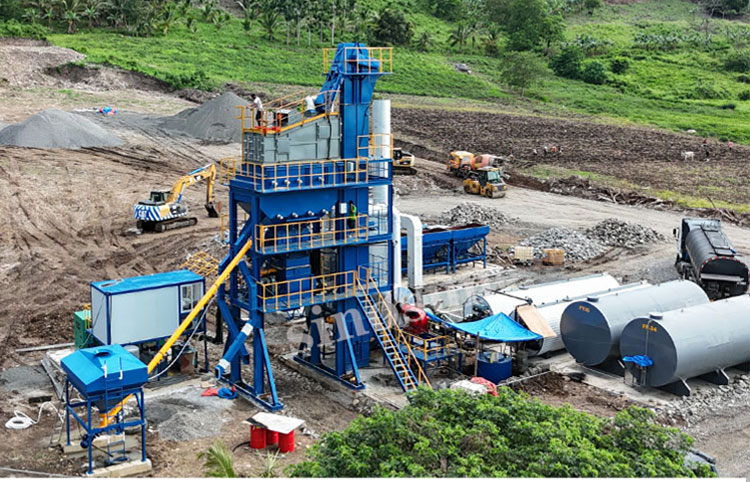

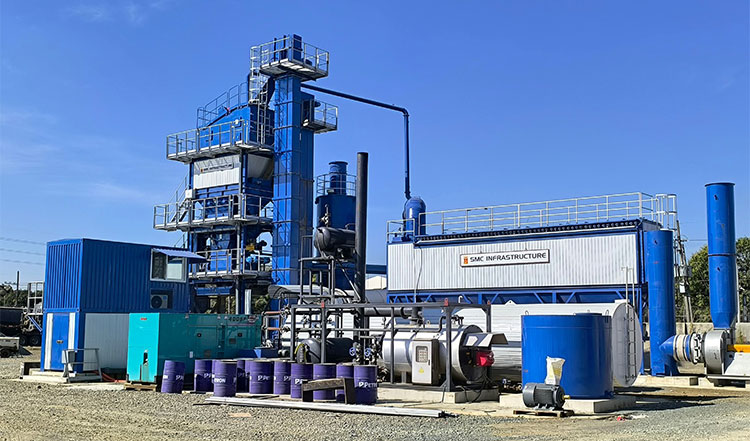

Stationary Asphalt Mixing Plant：
  • It features large production capacity and needs fixed foundation construction for installation. Its reasonable service radius is within 10 kilometers for qualified mixture delivery temperature. It is ideal for long-term commercial asphalt material production, large-scale expressway projects and urban road network construction.

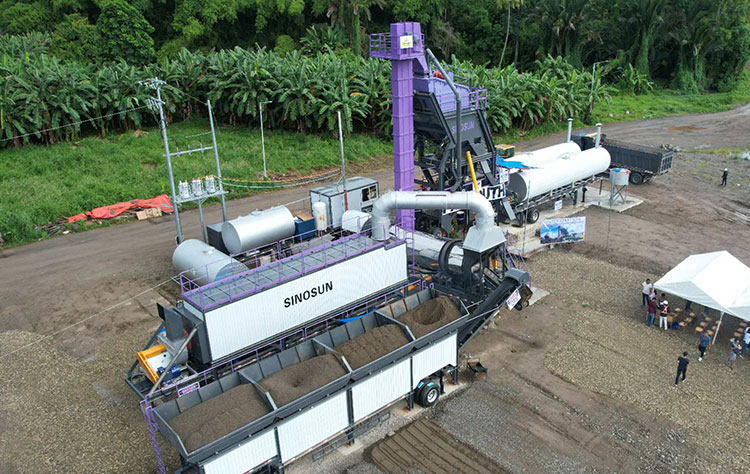

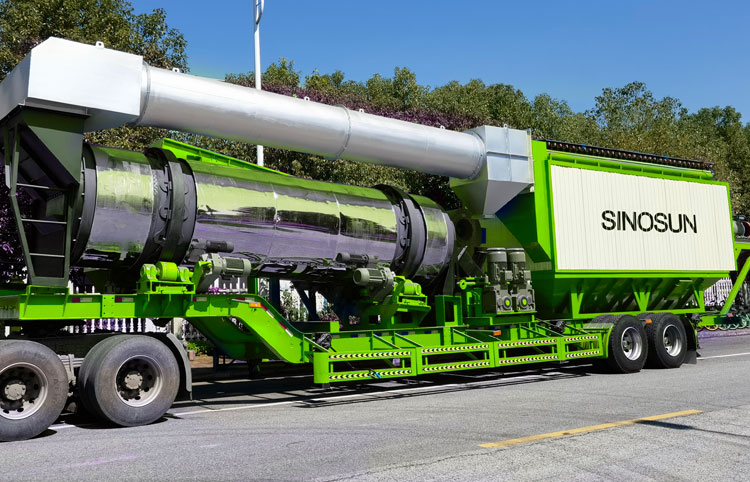

    Mobile Asphalt Mixing Plant：
  • Equipped with self-propelled chassis, it requires no foundation installation, supports tractor transportation and rapid on-site assembly. It is perfectly suitable for road maintenance, emergency road repairs and scattered small-scale engineering projects with multiple construction sites.
  • Semi-fixed Asphalt Mixing Plant：
    Designed with modular assembly structure and transported by trailers, it is positioned between fixed and mobile plants. It is widely used in multi-section highway construction of medium and long distance routes.


3. Classification by Production Capacity

Select corresponding capacity according to actual road project demands:
  • Small capacity: ≤40t/h, applicable to rural road construction and minor road repairs.
  • Medium capacity: 40~200t/h, suitable for municipal roads, ordinary highways and expressway connecting roads
  • Large capacity: ＞200t/h, used for expressways, airports, ports and large-scale key engineering projects.
  •

3.Advantages of Adopting Asphalt Mixing Plants in Road Construction

Large-scale road construction projects normally require a production capacity of 80-400 tons per hour to meet rapid construction progress demands and greatly boost working efficiency.

The plant realizes accurate weighing of aggregates and asphalt with stable temperature control. Equipped with bag dust removal, flue gas treatment and noise reduction systems, it fully meets urban environmental protection emission standards.

Supported by high automatic operation system, it adopts PLC one-click control with functions including formula storage, fault diagnosis and remote monitoring. It boasts strong matching flexibility, supporting production of ordinary asphalt mixtures, modified asphalt mixtures and recycled asphalt mixtures.

4.How to Choose a Suitable Asphalt Mixing Plant

Confirm project scale and construction period
Choose stationary type models LB3000-LB5000 for long-term, large-scale and expressway projects with stationary construction sites and continuous material supply demands.
Select mobile type models LB1000-LB2000 for short-term projects, road maintenance works and multi-section projects requiring frequent equipment relocation.
Confirm construction quality standards
Batch mixing plants are preferred for high-standard pavement and airport construction due to high mixing precision.
Continuous drum mixing plants are cost-effective choices for rural roads and low-grade road construction.
Consider environmental protection and recycling demands
Equip with high-efficiency dust removal and flue gas treatment devices for construction in urban areas and eco-restricted zones.
Choose RAP recycled asphalt mixing plants for old road reconstruction projects, which can mix 30%-50% reclaimed old road materials.
In short: Fixed batch mixing plants fit expressway and long-term projects; mobile batch mixing plants suit road maintenance and scattered projects; continuous drum mixing plants are the best choice for rural roads and cost-saving projects.

5.Calculation Method of Asphalt Mixing Plant Output
Core Calculation Formula：

Theoretical hourly output of asphalt mixing plant (t/h) = Single batch discharge weight × Discharge batches per hour
Basic formula: Q = (G × 60 ÷ T) ÷ 1000
  • Q: Theoretical hourly output, unit: t/h
  • G: Rated single batch capacity, unit: kg
  • T: Single batch circulation cycle, unit: minutes per batch (conventional range: 2.5~3 minutes)
  • Divide by 1000: Unit conversion from kilogram to ton
Under normal working conditions, one batch takes 3 minutes, so the hourly discharge batches = 60 ÷ 3 = 20 batches
Simplified formula: Hourly output (t/h) = Single batch weight (kg) × 20 ÷ 1000

Common Model Parameters & Standard Output (Batch Type LB/SLB Series)

Model Single Batch Capacity (kg) Theoretical Hourly Output (t/h)
LB1000 1000 80
LB1500 1500 120
LB2000 2000 160
LB3000 3000 240
LB4000 4000 320
LB5000 5000 400

The above data are standard nominal outputs; actual output is affected by various factors including raw material humidity, aggregate temperature, asphalt type, equipment failure, material waiting for unloading, construction scheduling pause, dust removal operation, RAP recycled material mixing proportion and operator proficiency.
Asphalt mixing plants are indispensable core equipment for road construction. Selecting matched asphalt mixing plants can effectively improve construction efficiency and save project costs. If you are looking for qualified asphalt mixing plant solutions, feel free to contact us anytime. We will customize professional construction schemes for you in a timely manner.
