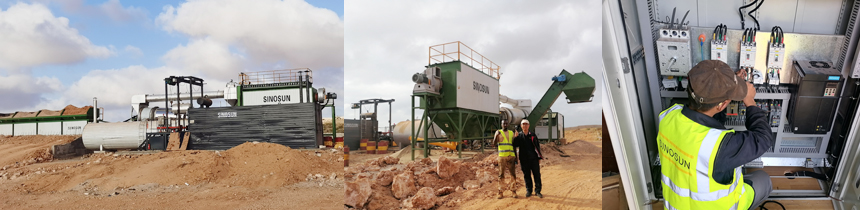

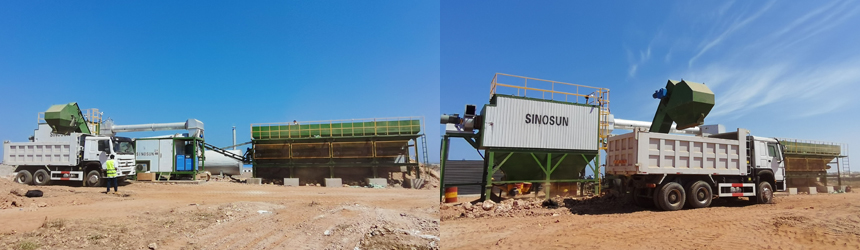

Installation Time: January , 3 - January , 28 , 2024
Location: Kismayu ( The Southern Port City) , Somalia

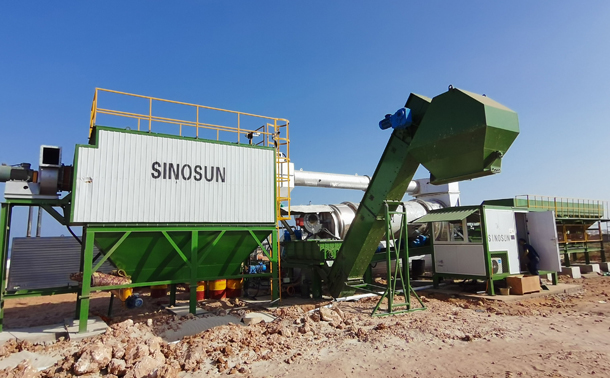

Equipment: CAP60T Stationary Continuous Mix Asphalt Plant
The CAP60T stationary continuous mix asphalt plant, capacity 60Ton/Hr, equipped with continuous mixer, bag house dust collecting system, 4TPH bitumen melting machine , bitumen tank, etc.
The customer is our regular customer from Somalia that we had cooperate many times for nearly 10 years. They had purchased our MAP800 mobile batch mix asphalt plant , capacity with 60ton per hour in 2015, which running well in the local site nowadays.

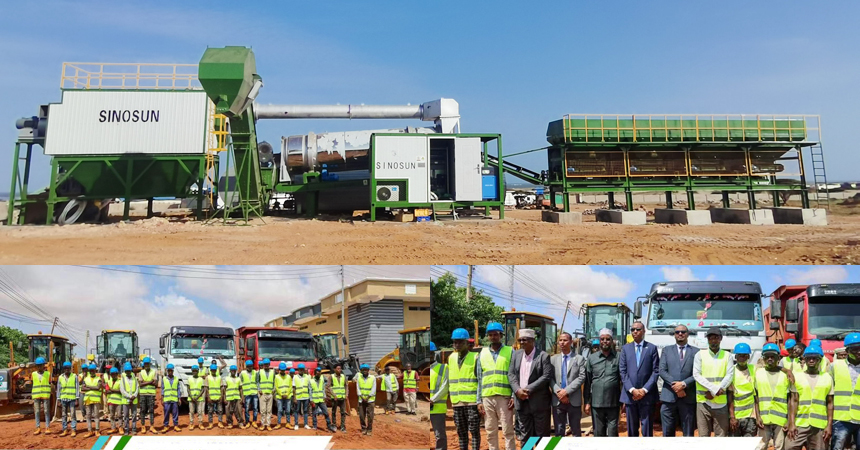

The asphalt plant installation completely makes SINOSUN opens up new market and new city in Somalia --- Kismayu.
Kismayo (also spelled Kismayu or Kismayo) is a port city in the southern Lower Juba region of Somalia, not far from Kenya. It is the capital of the Jubaland state, a semi-autonomous region in southern Somalia. We welcome customers to visit our asphalt plant jobsite to get more about SINOSUN and SINOSUN equipment.
Equipment Technical Indicators
Production Capacity : 60T/H (Rated Working Condition)
Type : Continuous Mix ; Stationary Type
Operation Mode: Full Auto & / Manual Operation
Total Installed Capacity: ～120kw( standard configuration) /380V-50Hz(optional)
Dust Removal Effect: Air Emission≤30mg/Nm3

Basic Configuration and Parameters
1.Stationary Cold Feed Bin System with 4 bins, capacity 7 m3/each
2.T60 drying drum with oil burner and continuous mixer
3.Gravity primary dust collector + bag house filter
4.1.1m3 Finished Mixed Asphalt Storage Silo& discharge System
5.Pneumatic system
6.Control room and electrical control cabinets
7.DT4 bitumen melting machine 4TPH
8.30T directing heating bitumen tank with 50mm rock wool isolation
The CAP60T 60ton per hour stationary continuous mix asphalt plant manufactured by SINOSUN is customized design for customer need according to their project requirement this time.
Our engineers improves design according to customer actual situation for reduces customer costs and meets their production requirements. As for SINOSUN professional technical team and strength that helps customers to win bidding projects and expand their business.
