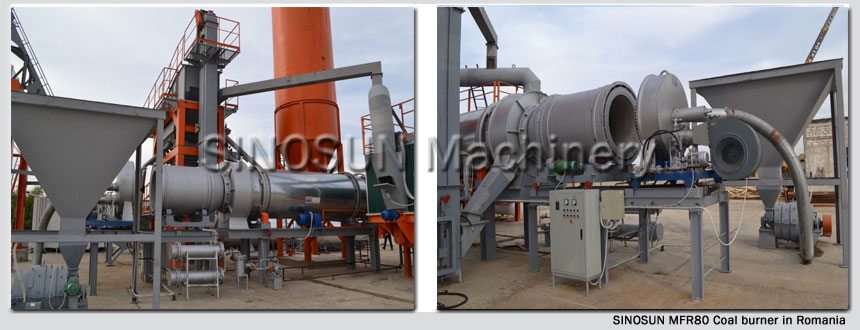

Coal Burner in Rumania- MFR1000

Installation Time: December, 2012

Construction site: Rumania

Equipment: MFR80 coal burner

Client Requirement:

The customer is a road contractor from Rumania.

The customer need a high quality coal burner suited their asphalt mixing plant.

They choose our MFR1000 coal burner.

Performance:

1.The coal consumption of MFR1000 coal burner is 720-1120kg/h.

2.The total power of MFR1000 coal burner is 43.45kw.

3.MFR1000 coal burner is equipped for asphalt mixing plant with 80t/h capacity.

4.MFR1000 coal burner can be ignition automatically.

5.The rotate and moving way of MFR1000 coal burner is power-driven.

6.The ignition movement and air door adjust of MFR1000 coal burner are driven by power.

7.The temperature control and monitor are operated manually.

8.MFR1000 coal burner adopts frequency coal supply adjust.

Main configuration list:

Item	Specification	Unit	Qty	Remark
Coal burner	MFR1000	Set	1	1.Autorotation 2.Power-driven move front and back 3.Auto ignition
Pulverize	FMJ-80	Set	1	Frequency speed control to supply coal
Distribution cabinet	PD-1000	Set	1
Mental pipe	FMJ80	root	1
Diesel igniter	RYDHB	Set	1	High pressure atomization
Fire opening	MFR1000	Unit	1	High temperature resistance, erosion firebrick
Automatic igniter		Set	1	High energy diesel igniter
Power-driven front and back move		Set	1
Automatic coal supply system				Using place self produced
