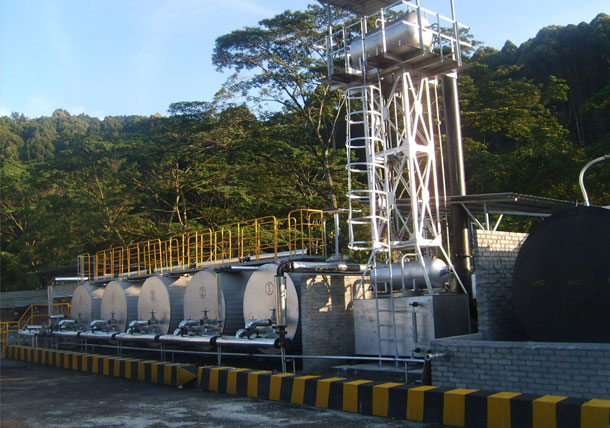

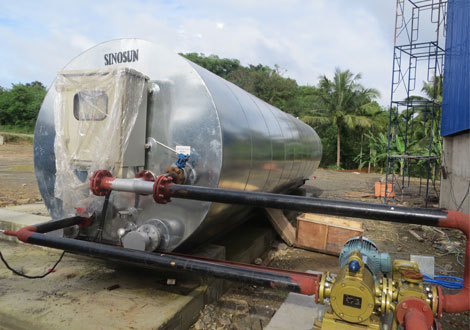

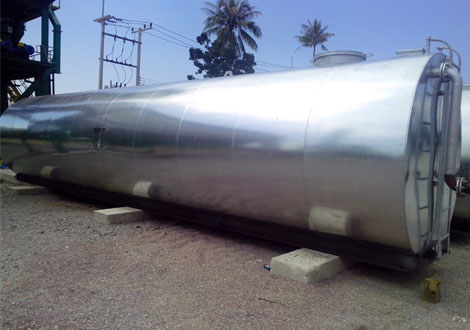

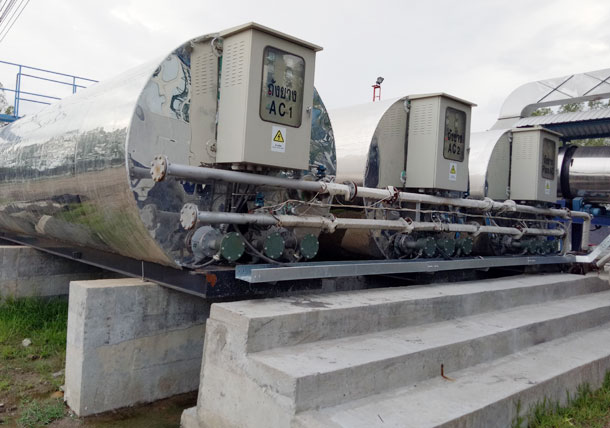

These structures and design can be used alone or support asphalt mixing plant. Our bitumen tank features in bitumen storage, pre-heat, dehydration, heating, temperature indicating and high-temperature alarming, etc.
Product description:
1. Capacity: 10-20000L
2. Optional material: 316L/ 304 stainless steel, Q235B/Q345R carbon steel
3. Type: vertical or horizontal
4. We can produce tanks that meet GMP standard.
5. We can design and produce Vertical stainless steel storage tank according to your requirements.
Advantages:
1. Good corrosion-resistance and suitable for chemical industry.
2. We have been specializing in manufacturing custom made products, both the mechanisms and the appearance, so we can customize the equipment according to your requirements.
3. We have professional industrial designer responsible for our products’ appearance.
Model
Heating power
Heating type
Control type
Heating efficiency
Capacity
Thickness of Insulation
Testing of Liquid level
Outside Package method
Shipping package
EBT50
80kw
Electrical heating tube
Centralized control
1-2°C/H
45-50 m3
70mm
electron/ mechanical
Galvanized iron/ stainless steel
FR container
EBT40
60kw
Electrical heating tube
Centralized control
1-2°C/H
35-40 m3
70mm
electron/ mechanical
Galvanized iron/ stainless steel
40HC
EBT30
40kw
Electrical heating tube
Centralized control
1-2°C/H
25-30m3
70mm
electron/ mechanical
Galvanized iron/ stainless steel
40HC
EBT20
30kw
Electrical heating tube
Centralized control
1-2°C/H
18-20 m3
70mm
electron/ mechanical
Galvanized iron/ stainless steel
40HC
