| >Cold Aggregate Feeding System
1.The aggregate hopper is equipped with big size stone sieve, to keep big size stones away.
2.Aggregate feeding is controlled by frequency inverter.
3.The side face of hoppers is equipped with fence to keep safety.
|
>Middle screen and Inclined Belt
1.The Middle screen can take away the aggregates which size is over 25 mm
2.The belt is mounted with tensioning device.
|
|
|

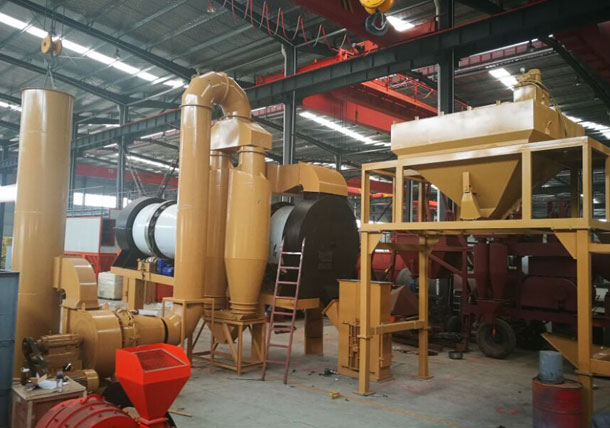

>Drum Dryer and Burner
1.The drum dryer inclined angle: 3°
2.Burner: Oil burner
3.Surface of the drum dryer is with insulation to save the energy.
|
>Hot Finished Products Elevator
1.Elevator is vertical bucket elevator .
2.Component: rack, plate chain lifting, hopper, tension device and shell
3.Function: take the mixture into finished goods hopper.
|
|
|
>Dust Filter System
1.Standard configuration is cyclone dust filter as the primary dust collecting system.
2.The secondary level dust filter(for option) is the wet dust filter (or bag house dust filter) when the working place has higher environmental requests.
|
>Control Room and Control System
1.PLC control system , auto start/firing, safety monitoring, automatic fault protection.
2.Weighing control system.
3.Control room:3000×2200×2500mm.
4.The Main electrical elements can be international brand or domestic brand.
|
|
|
>Hot Finished Products Bin
1.It is equipped with cylinder for discharging the hot mixed products.
|
>Bitumen Tank
1,Directly heating Bitumen Tank.
2.Capacity can be 30Ton or 40Ton bitumen tank which is suitable for transportation by sea. |
 |
 |
 |
 |
 |
 |
 |
 |
